Our Products
IEH produces the highest quality interconnects in a cost-effective structure. Combining superior performance, competitive solutions and creative engineering, IEH can help manufacturers meet any challenge.
PCB Connectors

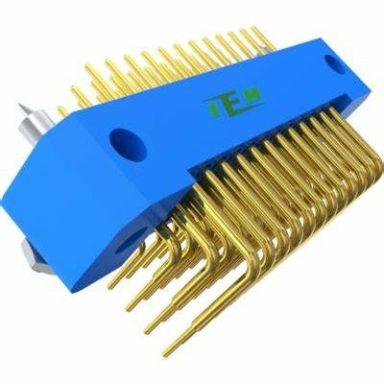

Hyperboloid PCB Connectors - Aerospace & Mil-Spec Connectors
IEH hyperboloid PCB Connectors have been trusted for over 40 years, they’ve consistently been at the forefront of design, innovation, and reliability, even in the toughest applications.
Hybrid Power

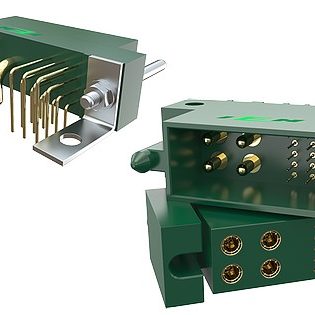

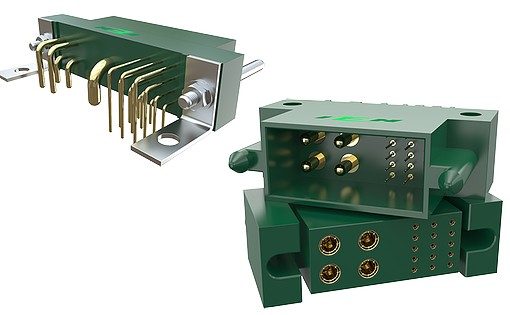

HBH Hybrid Power/Signal Hyperboloid Connectors
This new modular connector series provides the flexibility to mix signal and power contacts within a single housing, to meet the most demanding applications. HBH series offers the flexibility of power and signal contacts, in a single housing, in thousands of permutations.

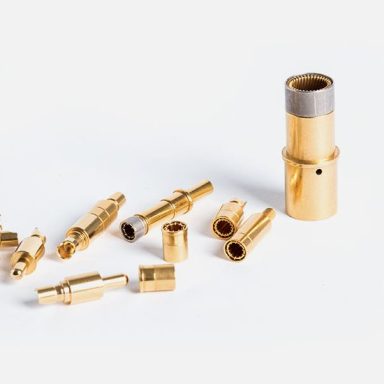

Contacts
When reliability is a must
When you need rock-solid reliability, limited space to work with, and high-current capability, IEH hyperboloid contacts are the go-to choice. With thousands of styles available, including options that meet Mil-Spec standards, IEH has you covered.
Custom Solutions
When Standard is Not an Option
IEH, create custom applications tailored to exactly what our customers need, often using our unique Hyperboloid contact technology to make sure it fits perfectly.
Value-Added Services
Flex & Cable Assemblies
We deliver dependable, cost-effective aerospace cable assembly solutions tailored to your mission-critical needs. Our value-added services include fully customized flex and aerospace cable assemblies, engineered to ensure long-term performance and operational success for your systems, your business, and your customers.
High Speed

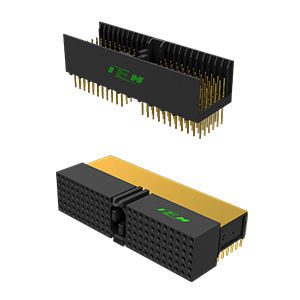

Hi-Speed, High-Density Hyperboloid Modular Interconnects
- Interchangeable with COTS board layout, but with Hyperboloid Contact System
- 2mm Footprint of cPCI PICMG 2.0
- LCP Insulator Meets Outgassing Requirements
- Press-fit or Solder tail Terminations.
What is Hyperboloid?

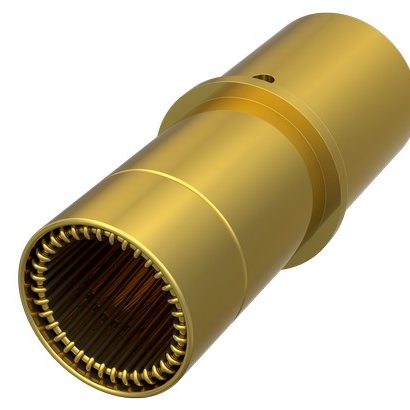

An IEH hyperboloid contact refers to a specialized electrical contact system developed by IEH Corporation that uses a hyperboloid wire-wound socket design. This unique geometry offers superior performance over traditional contact systems, especially in demanding environments such as aerospace, defense, and medical devices.

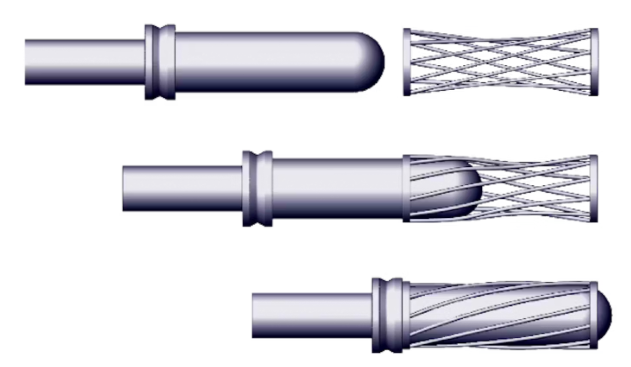

Hyperboloid Geometry:
- The contact is formed by angled wires inside a socket arranged in a hyperboloid pattern.
- When a pin is inserted, it contacts multiple wires at many points simultaneously, ensuring excellent electrical and mechanical connection.
Why Hyperboloid Connectors
At IEH Corporation, we design and manufacture hyperboloid connectors that not only accommodate, but exceed military and aerospace specification standards. Our acclaimed engineers have long provided reliable and innovative hyperboloid interconnect solutions for defense, commercial, aerospace and medical use. Key advantages include:
- Impervious to Shock & Vibration
- Improved Current Carrying Capacity
- Low, Low Contact Resistance
- 100,000+ Cycle Lifespan
- VILF (Very Low Insertion Force)
- Advanced Design
